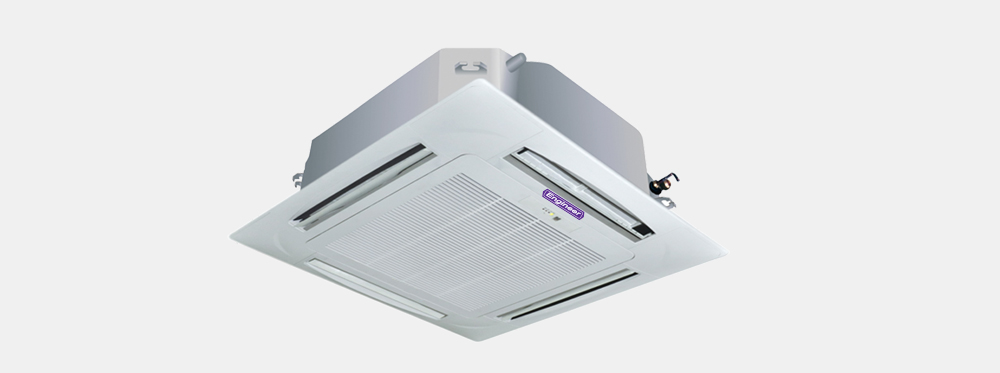

CASSETTE TYPE AC

General Specification

  • Power Supply: 220-240V/1∅/50Hz &

    380-420V/3∅/50Hz
  • Compressor type: Rotary/Scroll Compressor
  • Control system: Wireless Remote Control

Product Details

Model Indoor CCNS-030 CCNS-036 CCNS-048 CCNS-060
Outdoor ODU-030 ODU-036 ODU-048 ODU-060
Cooling Capacity Btu/h 30000 36000 48000 60000
Power Supply V/Phz/Hz 220-240V/1∅/50Hz 380-420V/3∅/50Hz
Power Input Kw 2.8 3.5 4.57 5.53
Running Current Amp 10.76 5.5 7.7 8.6
Compressor Type Rotary Compressor Scroll Compressor
Freon R-22
Airflow Cfm 700 920 990 1020
Dimension LxWxH Indoor mm 850x850x250 850x850x325 850x850x325 850x850x325
Outdoor mm 902x302x740 955x355x850 955x355x1235 955x355x1235
Net Weight Indoor kg 35 35 41 41
Outdoor 48 56 105 110
Noise Level Indoor dB(A) 40 44 46 48
Outdoor dB(A) 50 56 58 65
Connecting Method Flared Type
Moisture Removal L/h 3.2 4 4.5 6
Pipe Size L/S Inch 3/8", 5/8" 3/8", 3/4" 1/2", 3/4" 1/2", 3/4"
Control System Wireless Remote Control
